Ply Waffle Grid
for Ceilings

Maxi Grid


Maxi Grid

Define your space with rhythm and beauty of a waffle grid

Maxi Grid is a fully-customisable solution for feature ceilings and walls. The revolutionary slot-fixing system enables you to create incredible 3D grids for rhythm, form and movement, bringing your vision to life. Work with us to create the perfect Maxi Grid for your project. You determine the angles, openings and cut pattern using any of our plywood products as the grid structure or use one of our standard grid patterns; the options are endless. Define spaces, make a statement, and let your creativity reign with Maxi Grid.

Technical Info

Profile 200x200mm; 300x300mm; 400x400mm
Substrates / Timber Monterey Pine, Hoop Pine, Rock Maple, Okoume (Marine Grade), Baltic Birch
Finishes Maxi Film, Maxi Colour, Maxi Veneer
Thickness 18mm
Width 90mm
Formaldehyde E1 class
Lead Times 4-10 weeks. Large quantities will be worked out on a case by case basis
Min. order quantity 30sqm
Warranty 7 years. Project warranties apply. Please contact us for a project warranty certificate
Maxi Film White
Maxi Film Black
Maxi Panel Baltic Birch
Group Rating

Maxi Grid a standard Group 3 Fire Rating. Group 1 can be achieved with the Maxi Panel Baltic Birch timber, for more information please send your desired rating, project and application through to [email protected] and one of our representatives will be in touch shortly.

Please get in touch for specific Group certificate

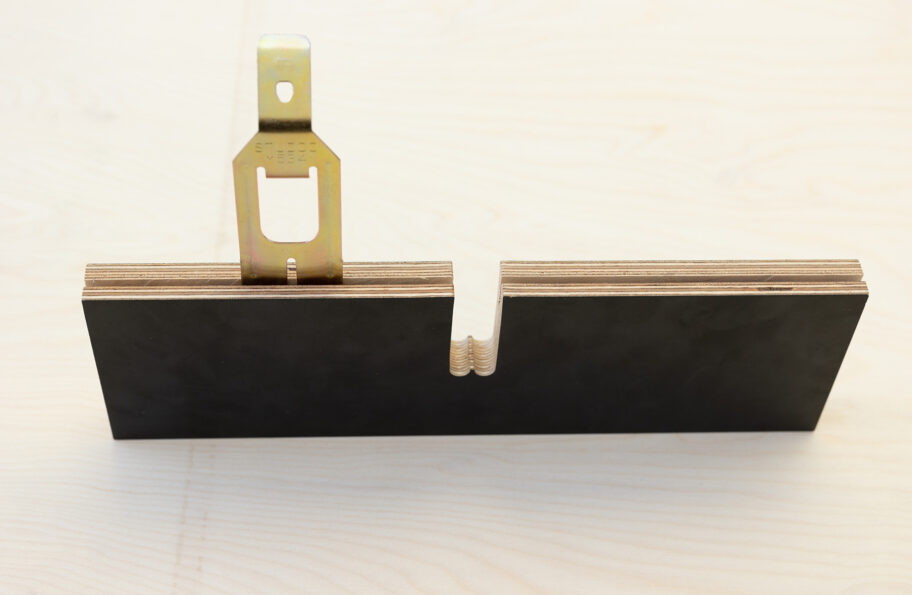

Maxiply will provide the Studco M534 Suspension Clip for ceiling installations, as per the image shown. The clip is then simply attached to a standard 5mm suspended ceiling rod.

Please get in touch if you have any questions

We have a range of Autocad and Revit files for each profile and colour.

Contact Maxiply to request Revit & Autocad Files

Maxi Grid can be customised with lengths; although being limited with the 2400mm length of ply. You can also customise the groove to allow for larger or smaller squares or even rectangles. As per the images shown, we can also provide ‘block-out’ panels for sprinkler heads and light fixtures. The options are endless.

Talk to us to help refine your specification

Baltic Birch, Monterey Pine and Baltic Pine are FSC® Certified- FSC-C139021 timber products, sourced from responsible forestry’s both environmentally and socially. Maxi Grid is also manufactured and pre- finished in-house in Melbourne.

Refer to our blog

Keep in mind– For Maxi Grid manufactured using plywood, for maximum durability and a longer life, all edges should be sealed with a clear hard-wax oil. Tins of hard-wax oil and coloured touch up oil are available for purchase. Maxi Grid is primarily for internal use.

Order Samples

Order samples by filling in your details here and will we be in contact to confirm your selection shortly.
Please note that if you are not an Architect or Designer, a small surcharge for samples may be required

If you have a question and are an Architect or Interior Designer; contact our Australian rep directly-
Ben Sangster– [email protected]

In the meantime, check out our latest projects or Instagram. We look forward to helping you maxiply your next project.
