Maxi Edge Patterned Panels
Plywood’s edge with a touch of class

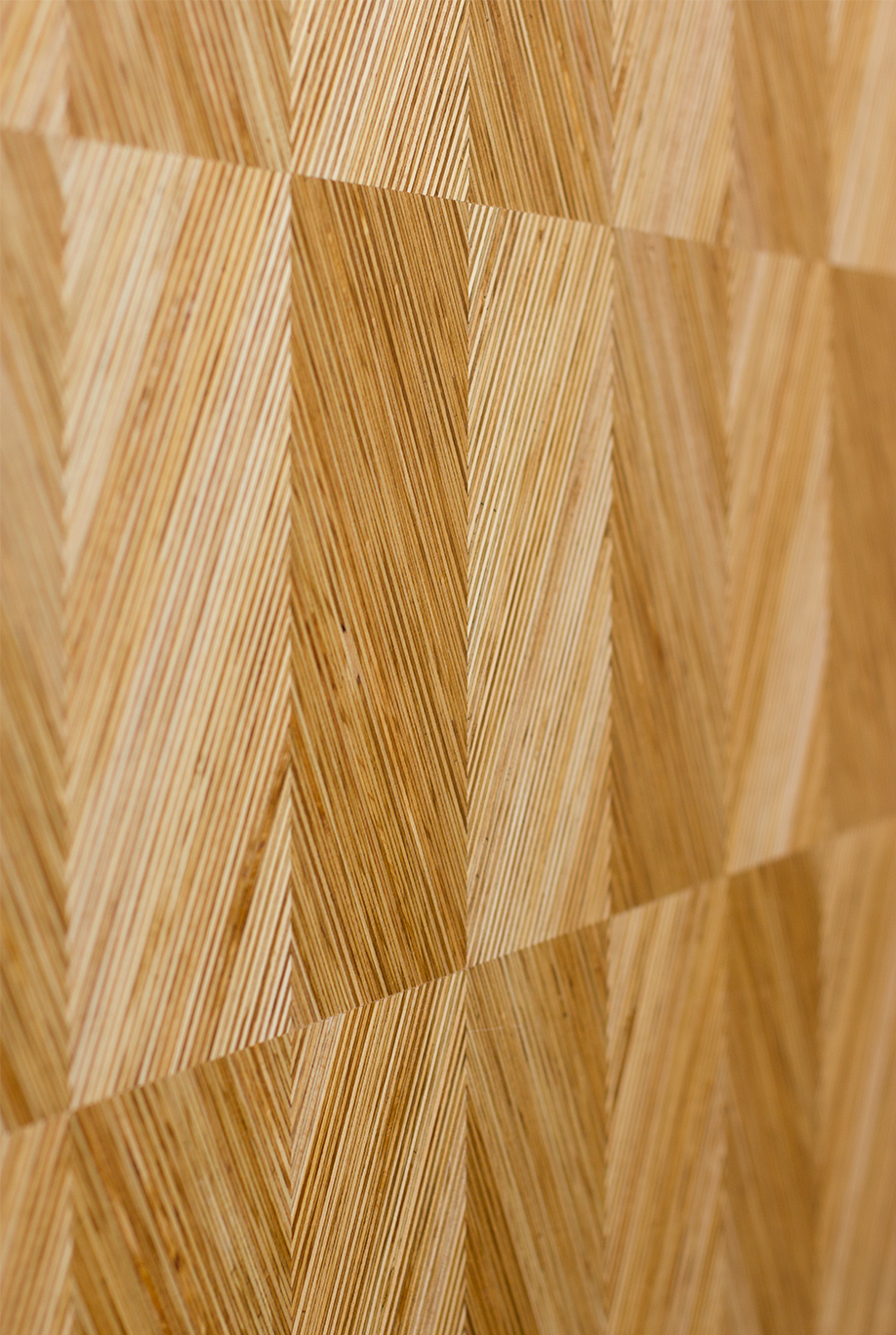

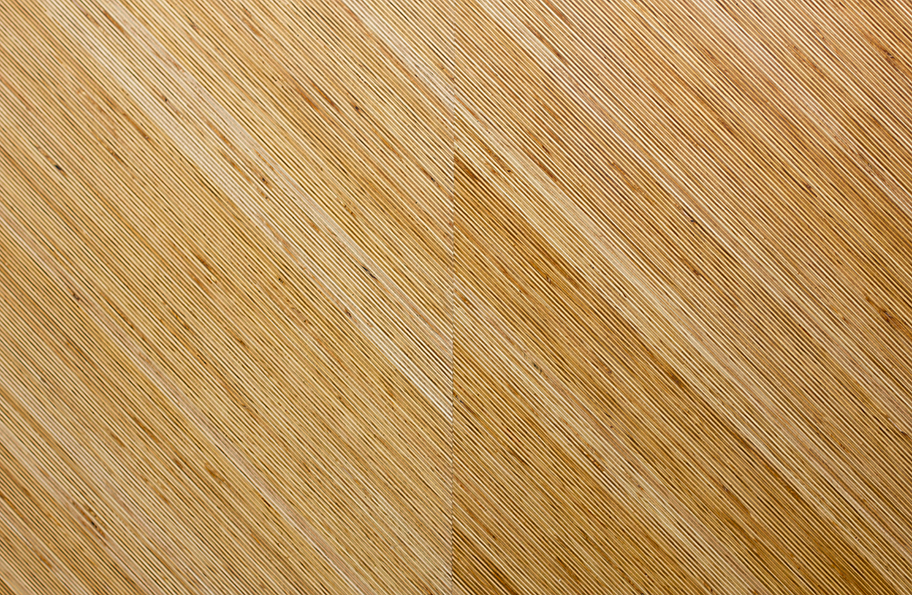

If you like Maxi Edge, wait until you meet Maxi Edge Patterned Panels. From the charming chevron to a classic 45-degree skew, not to mention the retro diamond, Maxi Edge: Pattern classy patterns makes that plywood edge even… edgier. Maxi Edge: Patterned Panels are sure to impress, no matter the application. Imagine this beauty bedecking your latest project and get in touch about our bespoke profiles and finishes options available.
Technical Info

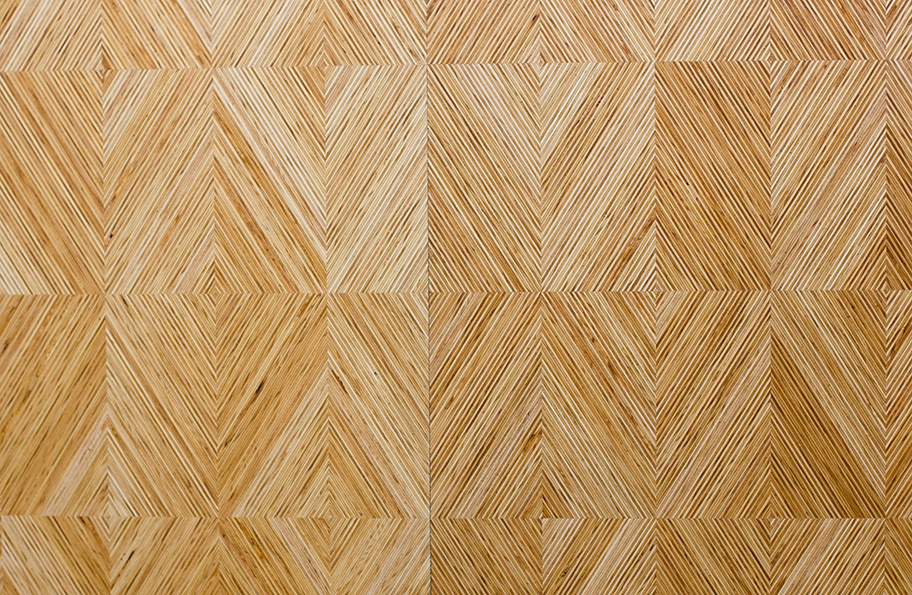

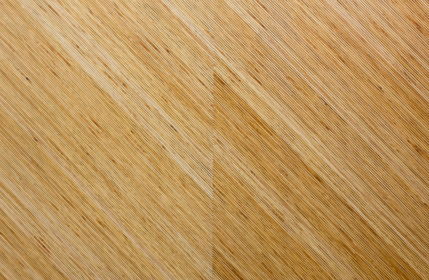

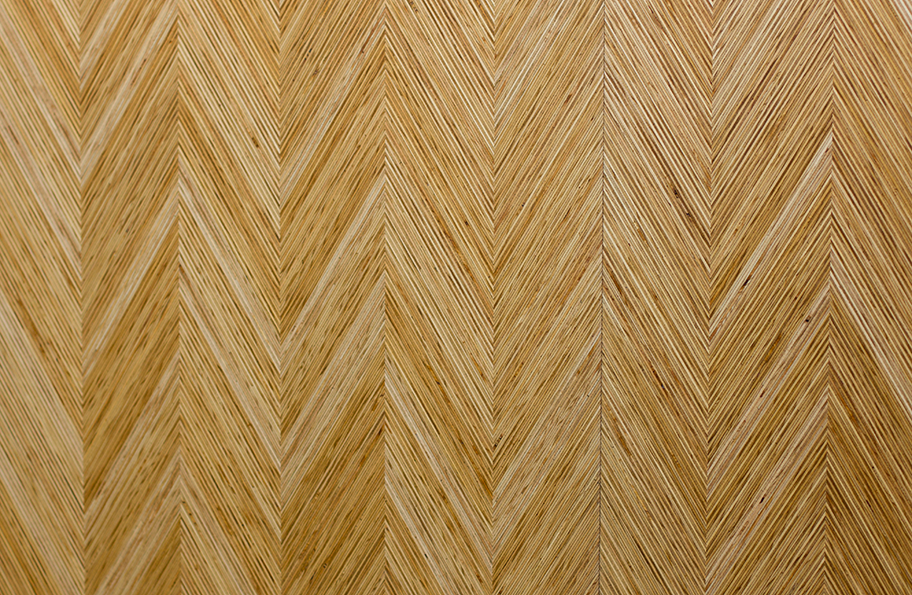

| Pattern | 45 Angle, Diamond, Chevron |
|---|---|
| Species | Fineline, Rustic, Urban, Alpine |
| Sheet Size | 2400x1200mm |
| Thicknesses | 12, 18mm |
| Finish | Intelligrain Clear Coat or otherwise specified on sample |
| Formaldehyde | E1 class |
| Lead Times | 8-10 weeks. Large quantities are worked out on a case-by-case basis |
| Min. order quantity | 10 sheets/ set- up fee for under 10 sheets |
| Warranty | 7 years. Project warranties apply. Please contact us for a project warranty certificate |
Applications
All Maxi Edge Patterned Panels are suitable for walls/ ceiling linings and joinery applications. Cupboard doors are not recommended and you can read more in depth on our blogs.

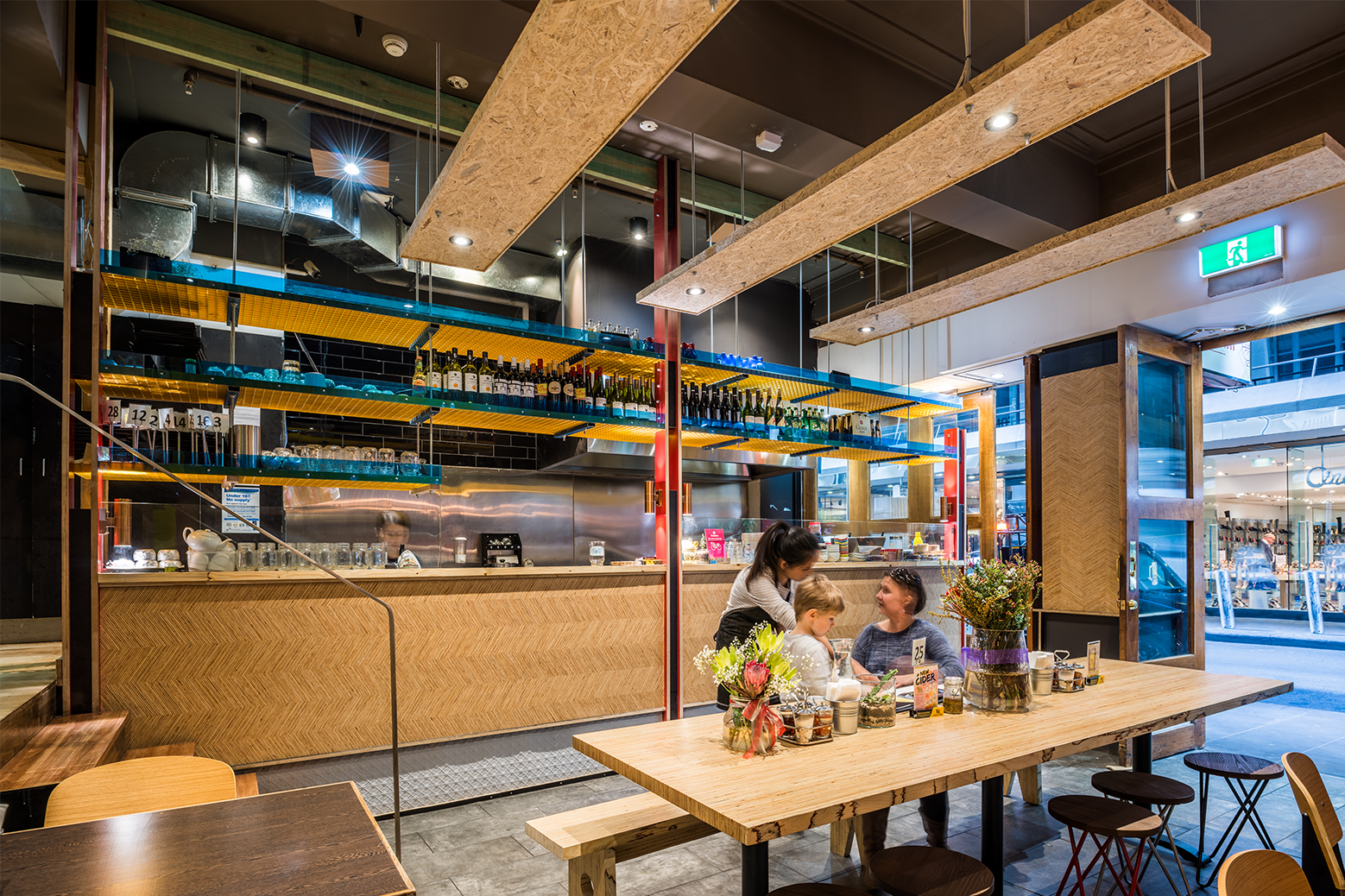

Project: Jing Jai Thai with product Maxi Edge Patterned Panels Rustic Chevron Architect: JMW Architects

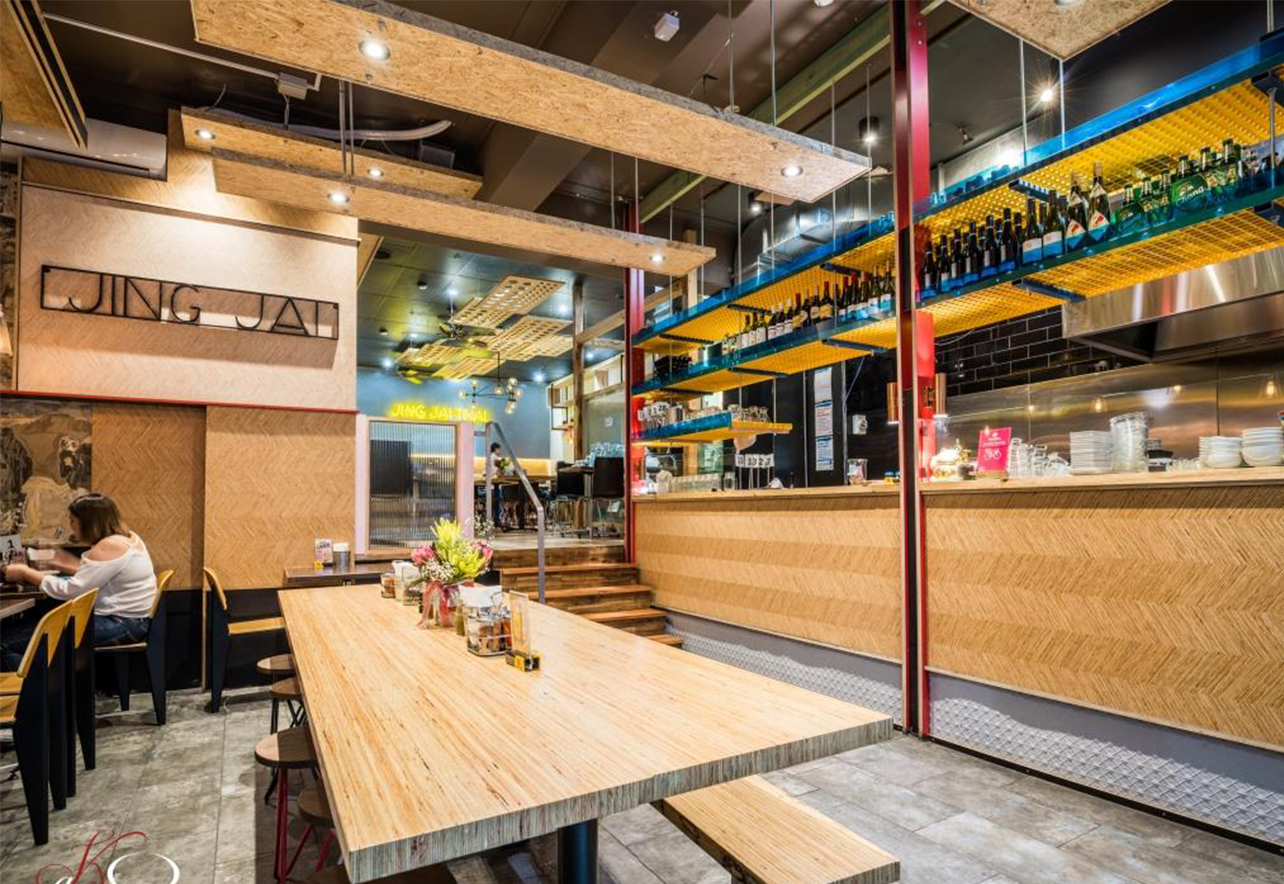

Project: Jing Jai Thai with product Maxi Edge Patterned Panels Rustic Chevron Architect: JMW Architects
Project: Jing Jai Thai with product Maxi Edge Patterned Panels Rustic Chevron Architect: JMW Architects
Project: Jing Jai Thai with product Maxi Edge Patterned Panels Rustic Chevron Architect: JMW Architects
Maxi Edge Patterned Panels holds a standard Group 3 Fire Rating. Group 1 can be achieved, for more information please send your desired rating, project and application through to [email protected] and one of our representatives will be in touch shortly.
Please get in touch for specific Group certificate
Depending on your application, the best installation method for walls and ceilings using Maxi Edge Patterned Panels is our Z- Clip system.
Learn More

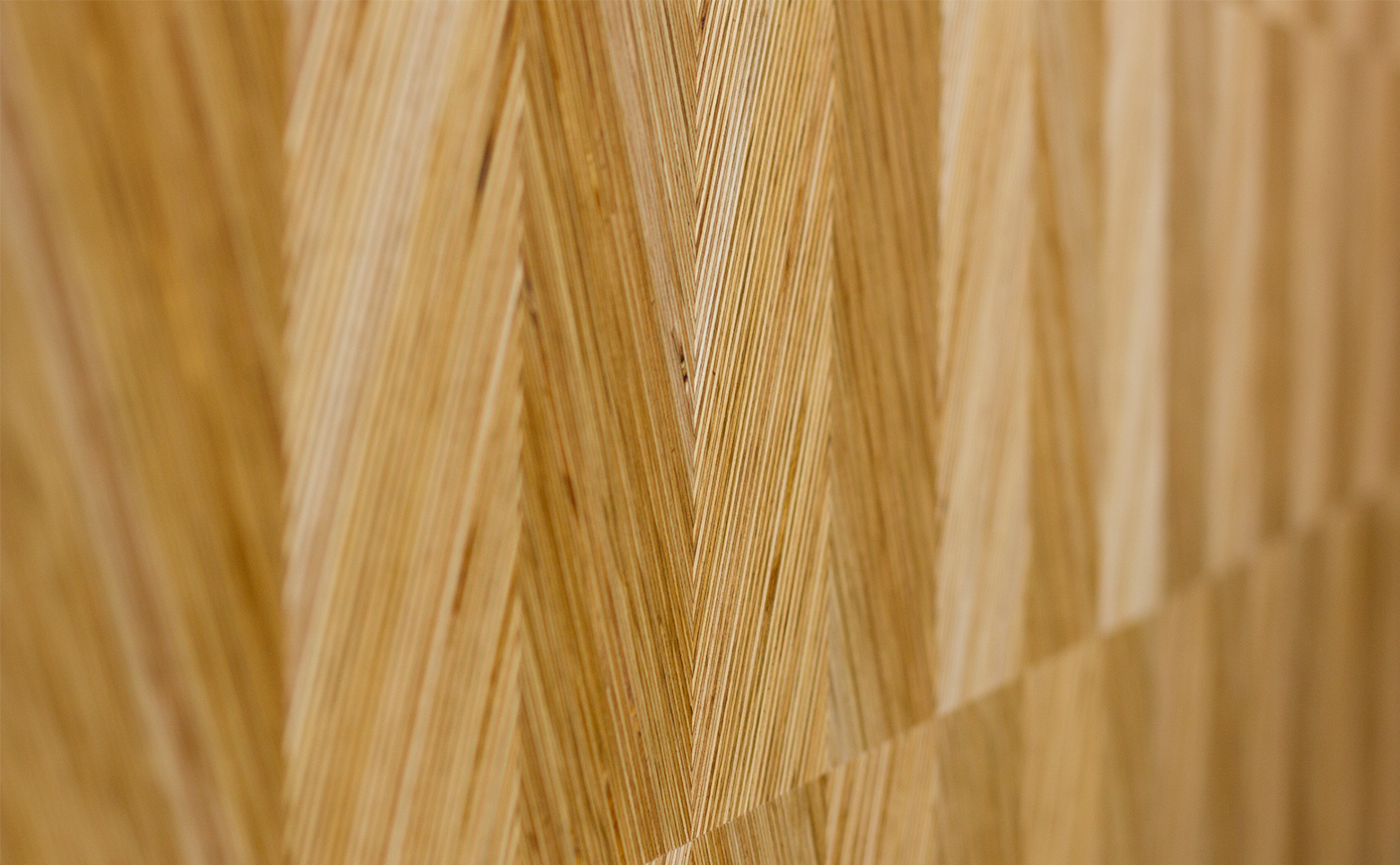

Maxi Edge Patterned Panels can be customised in a range of forms. Custom finishes and colours such as black, grey, browns etc… can be achieved. Custom sheet sizes, cuts and thicknesses are also available.
Talk to us to help refine your specification
Baltic Birch, Monterey Pine and Baltic Pine are all FSC® Certified - FSC-C139021 products, meaning that all timber used comes from responsible forestry’s both environmentally and socially. Maxi Panel is then pre- finished in Melbourne.
Refer to our blog
Keep in mind– Maxi Edge Patterned Panels are manufactured using different timber species. For maximum durability and a longer life, all edges should be sealed with a clear hard-wax oil. Tins of hard-wax oil and coloured touch up oil are available for purchase. Maxi Edge Patterned Panels are primarily for internal use. Maxiply does not recommend any plywood to be used for doors as external factors such as handling can affect the structure. For more information see our blog article on plywood doors.
Order Samples
Order samples by filling in your details here and will we be in contact to confirm your selection shortly.
Please note that if you are not an Architect or Designer, a small surcharge for samples may be required
If you have a question and are an Architect or Interior Designer; contact our Australian rep directly-
Ben Sangster– [email protected]
In the meantime, check out our latest projects or Instagram. We look forward to helping you maxiply your next project.

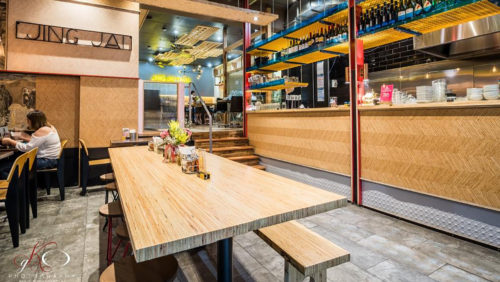

Featured in these projects
