Maxi Perforated Plywood Panels
Maxiply’s perforated plywood panels are perfect for your acoustic needs
The ‘quiet achiever’ of our range, Maxi Perforated Plywood Panel delivers a stylish design solution to meet all your acoustic needs.
Designed to dampen and attenuate sound in a wide range of interior settings, with Maxi Perforated Panel, aesthetics and acoustics can go hand-in-hand. An ability to achieve an NRC of up to 0.8 without sacrificing on style makes Maxi Perforated Panel highly suited to corporate offices, entertainment venues, sporting and education facilities and so much more.
Maxi Perforated Panel is available in a fantastic range of plywood timbers and finishes, including Maxi hardwood Veneers and plywood veneers. Additionally our hard-wax oil finishes in your choice of Maxi Colour gives you absolute versatility to create a unique design with impeccable acoustics.
Delivered pre-finished and ready for installation, complete with a standard black acoustic backing, Maxi Perforated Panel provides the perfect all-round solution for every project where acoustics are an integral part of the design.
Technical Info
| Timber / Substrate | Monterey Pine, Hoop Pine, Rock Maple, MR MDF & FR MDF, Okoume (Marine Grade), Baltic Birch |
|---|---|
| Sheet Sizes | 2400x1200mm |
| Thickness | 12, 18mm |
| Finishes/Colours | Maxi Colour, Maxi Evolve, Maxi Hardwood Veneer, Maxi Film |
| Formaldehyde | E1 class |
| Lead Times | 4-10 weeks. Large quantities are worked out on a case-by-case basis |
| Min. order quantity | 10 sheets |
| NRC Rating | NRC of up to 0.8. Contact us if a certain NRC value is required. |
| Warranty | 7 years. Project warranties apply. Please contact us for a project warranty certificate |
Applications
Maxi Perforated Plywood Panels are suitable for both, wall and ceiling linings.

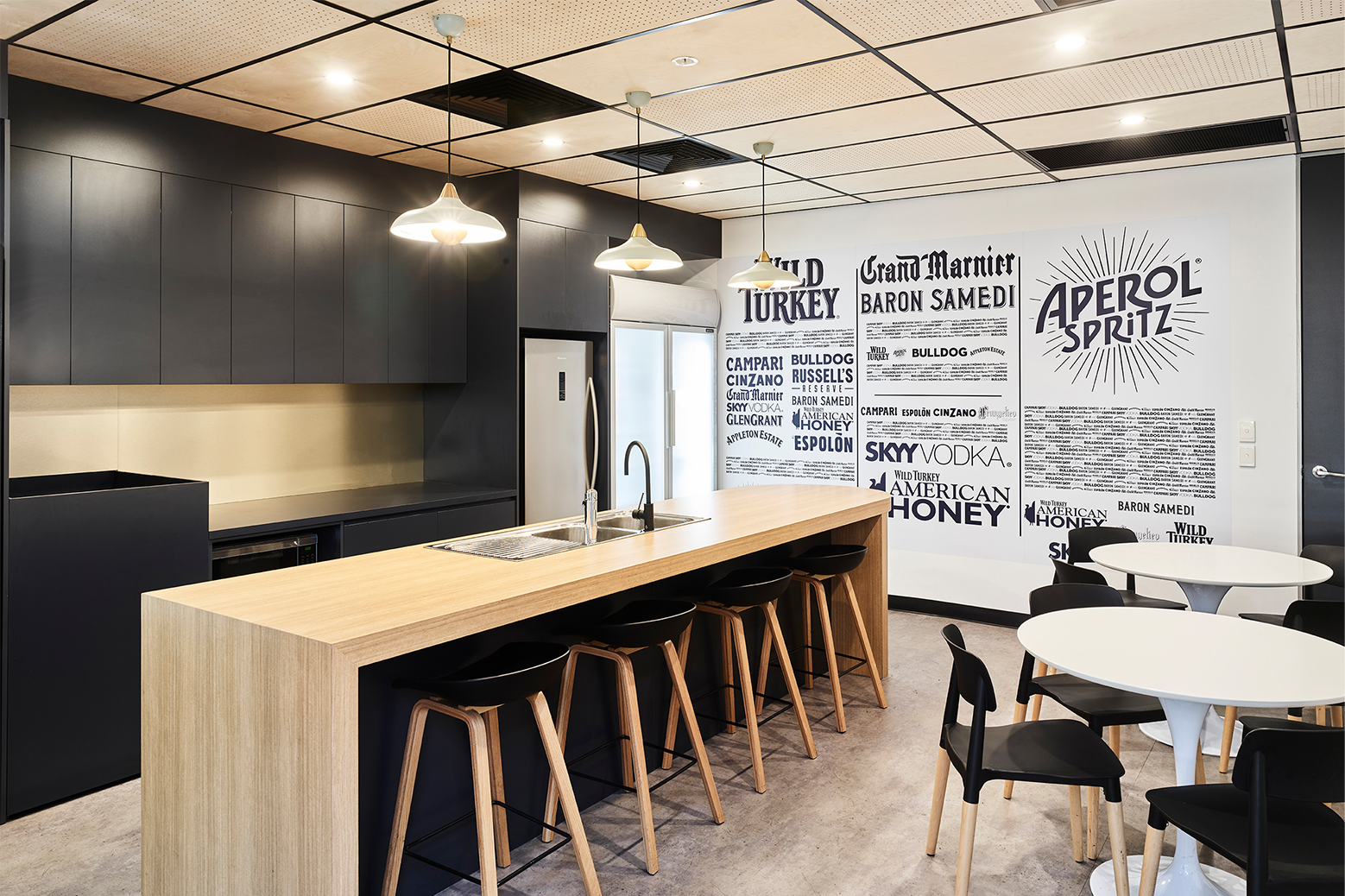

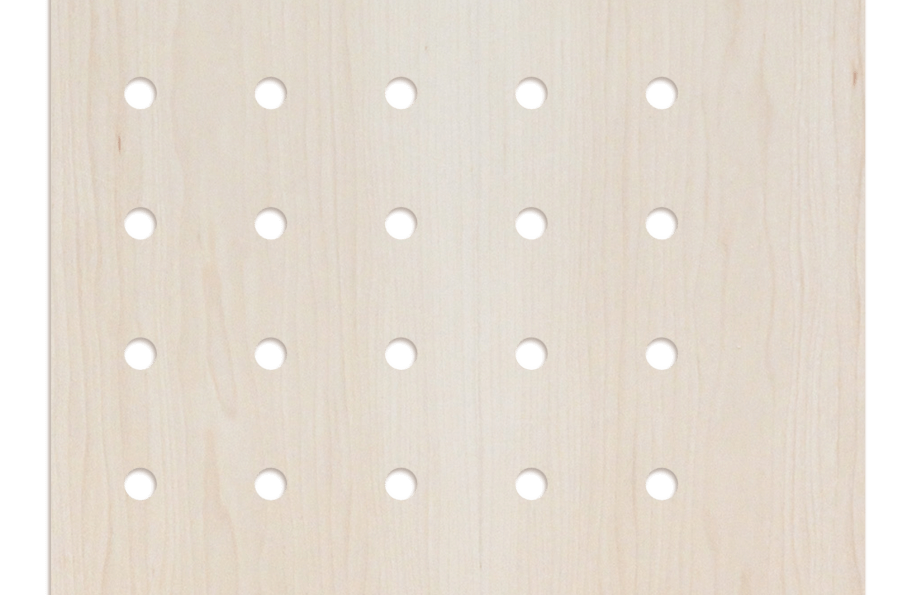

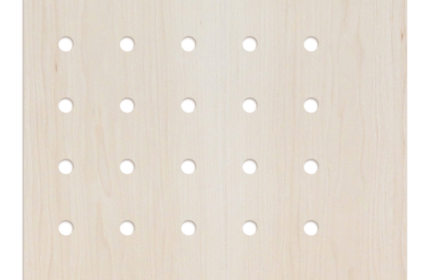

Project: Campari Group with product Maxi Perforated Panel Baltic Birch Optic Square White Terrace in a Standard Grid system. Architect: Zircon Interiors

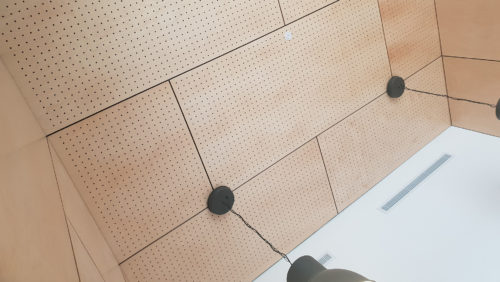

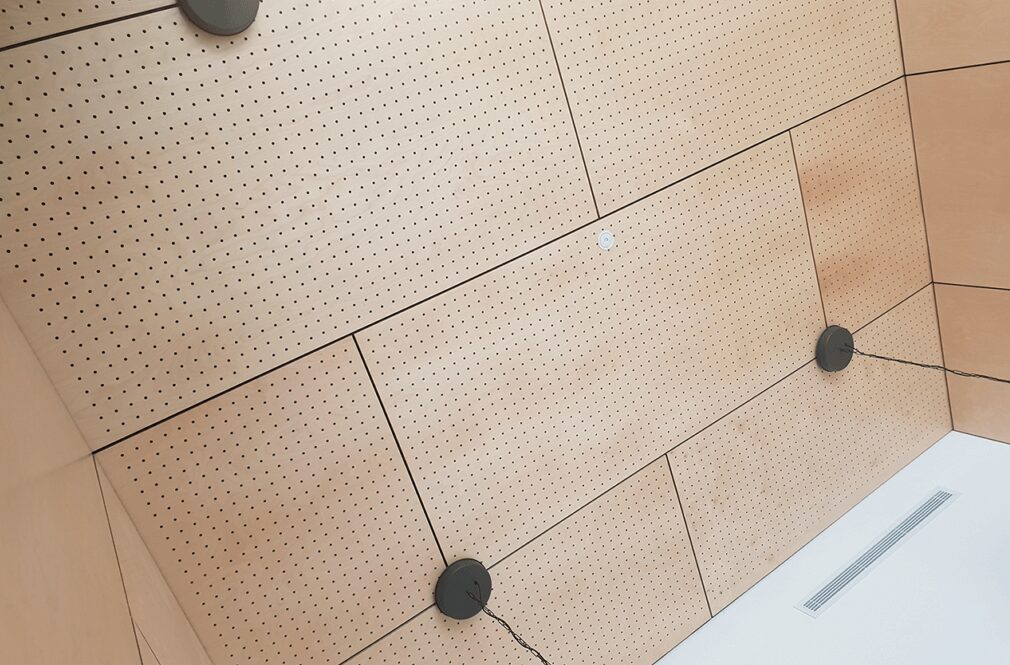

Project: Melbourne Cat Vets with product Maxi Perforated Panel Baltic Birch Optic Square White Terrace. Architect: Nock Architecture

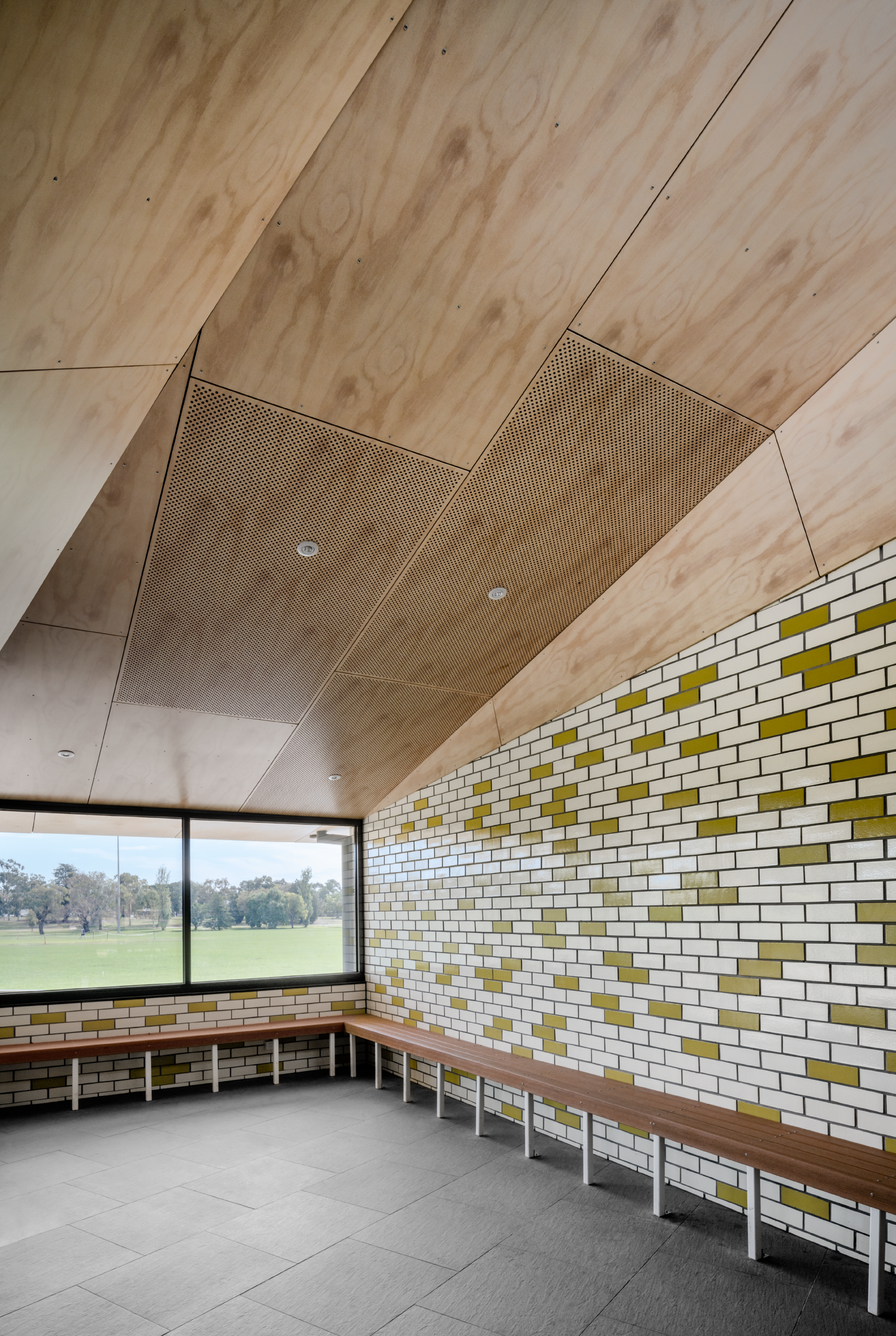

Project: Dendy Park Pavilion with product Maxi Perforated Panel customised colour and perforations. Architect: Cohen Leigh
Project: Campari Group with product Maxi Perforated Panel Baltic Birch Optic Square White Terrace in a Standard Grid system. Architect: Zircon Interiors
Project: Melbourne Cat Vets with product Maxi Perforated Panel Baltic Birch Optic Square White Terrace. Architect: Nock Architecture
Project: Dendy Park Pavilion with product Maxi Perforated Panel customised colour and perforations. Architect: Cohen Leigh
Maxi Perforated Panel holds a standard Group 3 Fire Rating. Group 1 can be achieved, for more information please send your desired rating, project and application through to [email protected] and one of our representatives will be in touch shortly.
Download Group 3 Baltic Birch Perforated Panel Certificate

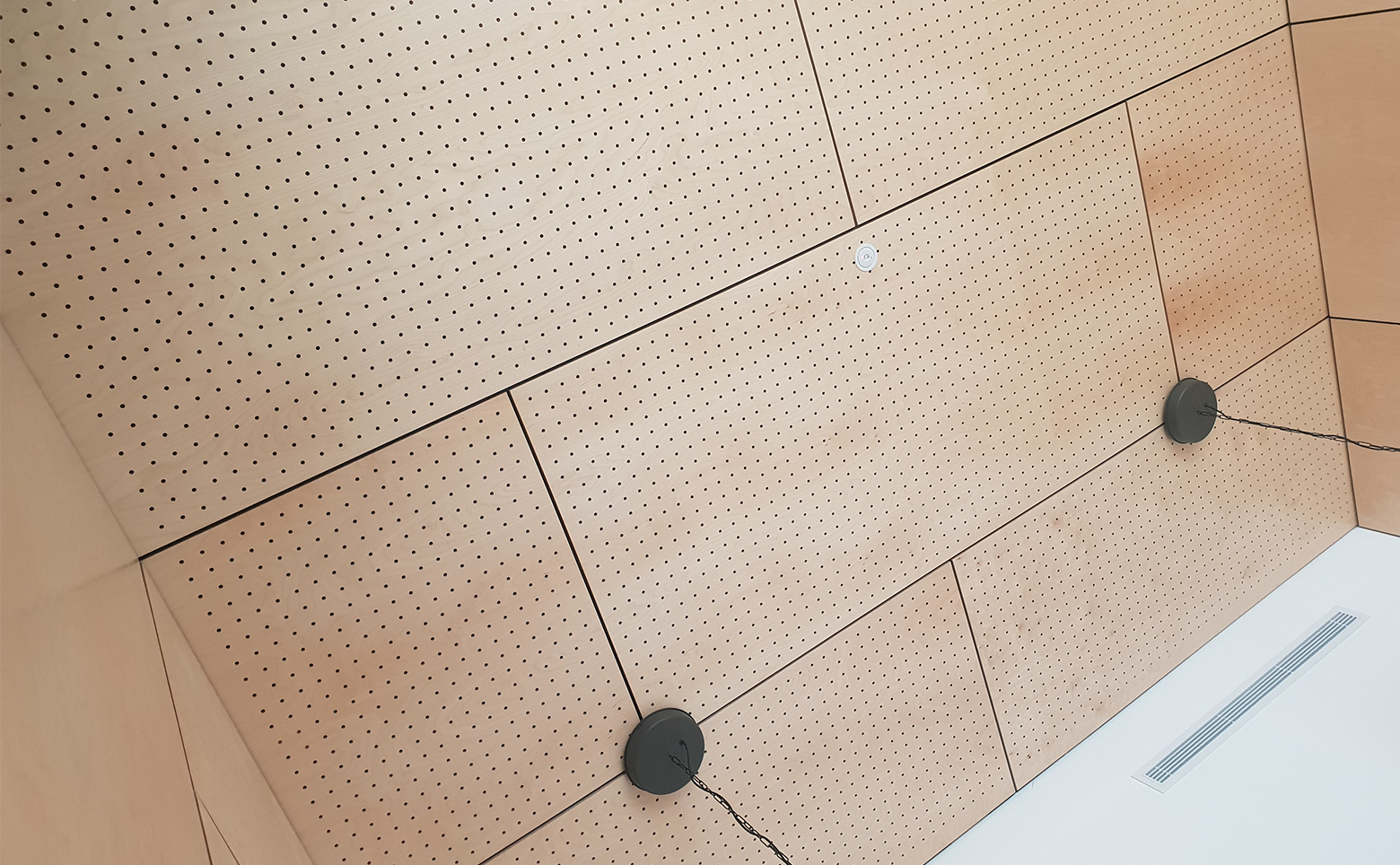

We can meet up to an NRC of 0.7. This depends on the hole sizes and spacing of the panel, which acoustic backing is required and cavity depth.
Talk to us to help refine your specification
Depending on your application, the best installation method for walls and ceilings using Maxi Perforated Panel is our own Maxiply Concealed Plug (Walls/ Ceilings) or our Z- Clip system (Walls only).
Learn more

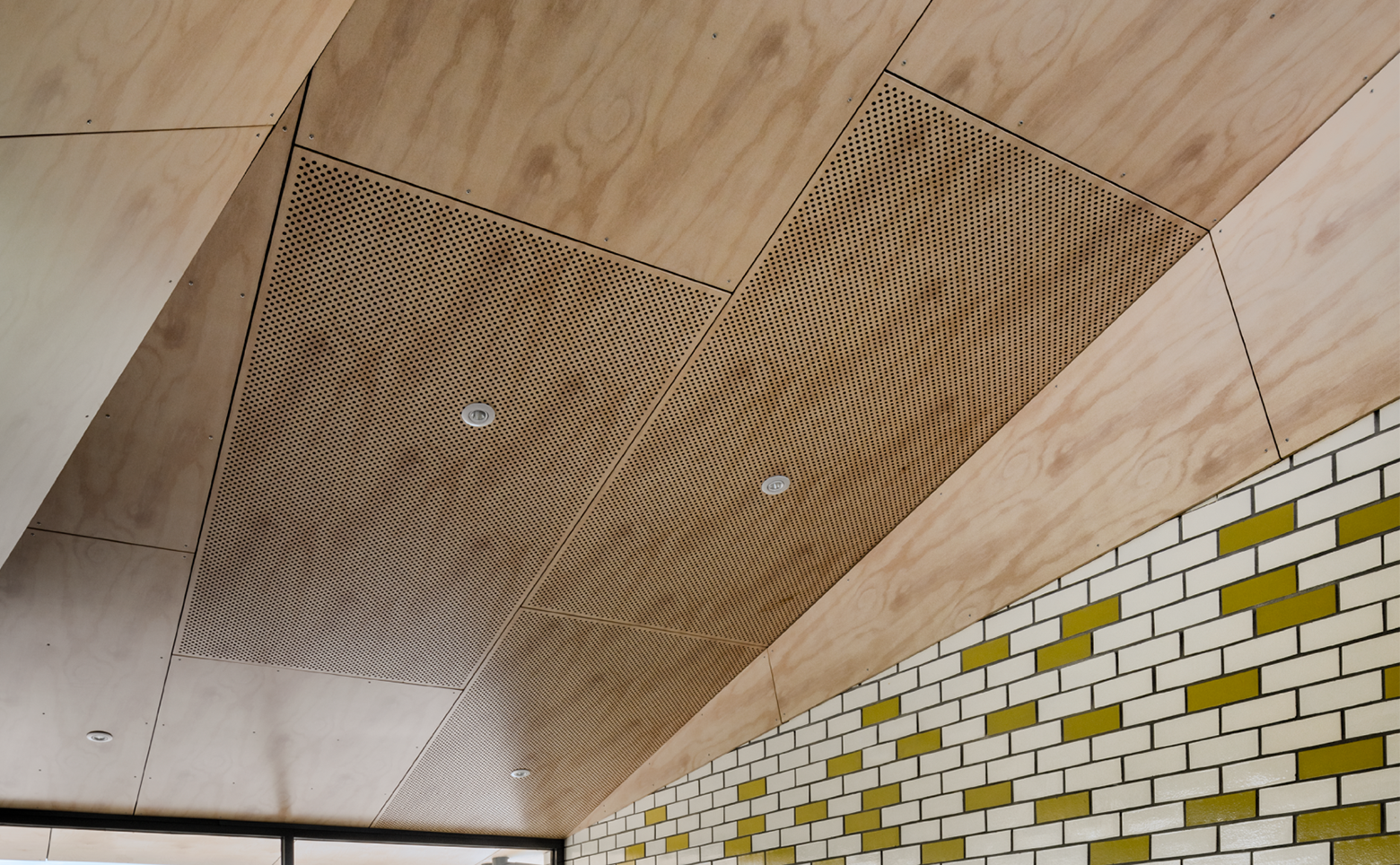

Maxi Perforated Panel can be customised in a range of forms. Custom sheet sizes, cuts, thicknesses and perforation patterns are available, especially for ceiling grid applications. Contact us for any custom projects.
Talk to us to help refine your specification
Baltic Birch, Monterey Pine and Baltic Pine are all FSC® Certified - FSC-C139021 products, meaning that all timber used comes from responsible forestry’s both environmentally and socially. Our Maxi Perforated Panels are then pre- finished in Melbourne.
Refer to our blog
Keep in mind
Maxi Perforated Plywood Panels are manufactured using Baltic Birch. Baltic Birch is a premium product, that produces stronger, exterior-grade plywood. For maximum durability and a longer life, all edges should be sealed with a clear hard-wax oil. Tins of hard-wax oil and coloured touch-up oil are available for purchase. Maxi Perforated Panel is primarily for internal use. Maxiply does not recommend any plywood to be used for doors as external factors such as handling can affect the structure. For more information see our blog article on plywood doors.
Order Samples
Order samples by filling in your details here and will we be in contact to confirm your selection shortly.
Please note that if you are not an Architect or Designer, a small surcharge for samples may be required
If you have a question and are an Architect or Interior Designer; contact our Australian rep directly-
Ben Sangster– [email protected]
In the meantime, check out our latest projects or Instagram. We look forward to helping you with your next project.
